MKGF

This is the official github repository for the paper "MKGF:A Multi-modal Knowledge Graph Based RAG Framework to Enhance LVLMs for Medical Visual Question Answering".

We present the source code and release the data.

Contents

• MKGF
  • Contents
  • Overview
  • Dataset
  • MMKG
  • Method

Overview

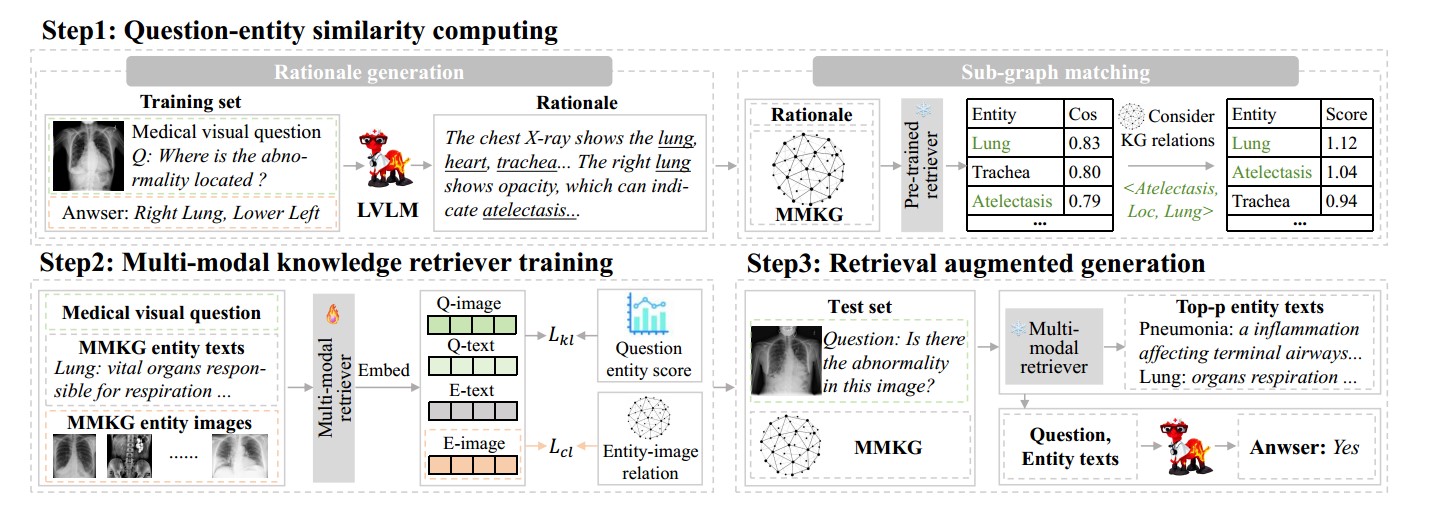

We propose a MKGF framework that leverages a multi-modal medicaknowledge graph (MMKG) to relieve the hallucination issue without fine-tuning the abundant parameters of LVLMs. Firstly, we employ a pre-trained text retriever to build question-knowledge relations on training set. Secondly, we train a multi-modal retriever with these relations. Finally, we use it to retrieve question-relevant knowledge and enhance the performance of LVLMs on the test set. To evaluate the effectiveness of MKGF,we conduct extensive experiments on two public datasets Slake and VQA-RAD.

Dataset

To evaluate the effectiveness of the proposed MKGF framework, we conduct experiments on two public Med-VOA datasets:(1)Slake and (2)VQA-RAD. For Slake, we use its English version, which contains 642 radiology images and 7,033 question-answer pairs. For VQA-RAD, it contains 315 radiology images and 3,515 question–answer pairs.

MMKG

We construct the MMKG based on a public medical knowledge graph (MKG), which has 52.6K triples of the head entity, relation and tail entity.

The textual part of the MMKG is available in /KG.

The pictures in the knowledge graph will be given after the official submission of the paper.

Method

Step 0

Prepare models,dataest and environment

Download the LVLMs LLava-med-7B or HuatuoGPT-Vision-7B in /model.

Download the model BGE and BiomedCLIP in /model. for retrieval.

Download the dataest SLAKE in /dataest/SLAKE

Then install the environment in requirements.txt

>>> pip install -i https://pypi.tuna.tsinghua.edu.cn/simple -r requirements.txt

Step 1

Generate rationale

You can run the following script to generate rationale based on SLAKE with GPT-4o.

>>> cd rationale
>>> python generate_rationale.py

Or you can directly use the file we generated using GPT-4o(/rationale/SLAKE/slake_rationale.json)

Step 2

Train multimodal retriever

You can run the following script to train a multimodal retriever based on BiomedCLIP

>>> cd reranker
>>> python -u main.py

Step 3

Run MKGF

You can run the following script to run and evaluate our method on LLava-med-7B.

>>> cd MKGF_llava
>>> python llava_slake.py

You can run the following script to run and evaluate our method on HuatuoGPT-Vision-7B.

>>> cd MKGF_huatuo
>>> python huatuo_slake.py
