CityJSON MCP

<p align="center"> <img src="web/favicon.svg" width="96" height="96" alt="CityJSON MCP logo"> </p> <p align="center"> <a href="LICENSE"><img src="https://img.shields.io/badge/license-MIT-blue.svg" alt="MIT license"></a> <img src="https://img.shields.io/badge/Node.js-20%2B-339933.svg" alt="Node.js 20 or newer"> <img src="https://img.shields.io/badge/CityJSON-2.0.2-e0a05b.svg" alt="CityJSON 2.0.2"> <img src="https://img.shields.io/badge/MCP_tools-37-5c6ac4.svg" alt="37 MCP tools"> <a href="https://hub.docker.com/r/yarroudh/cityjson-mcp"><img src="https://img.shields.io/badge/Docker-yarroudh%2Fcityjson--mcp-2496ed.svg" alt="Docker image"></a> <a href="https://doi.org/10.5281/zenodo.22151334"><img src="https://zenodo.org/badge/DOI/10.5281/zenodo.22151334.svg" alt="DOI"></a> <a href="https://github.com/Yarroudh/cityjson-mcp/wiki"><img src="https://img.shields.io/badge/docs-Wiki-181717.svg" alt="Wiki"></a> </p>

CityJSON MCP provides a web chat application and an MCP server for CityJSON files. It supports inspection, queries, validation, transformations, export, CityGML conversion, and cjdb/PostGIS operations.

The Docker image includes:

• cjio for CityJSON transformations and export.
• cjval for syntax, schema, and structural validation.
• val3dity for 3D geometry validation.
• citygml-tools for CityGML and CityJSON conversion.
• cjdb for PostgreSQL/PostGIS import and export.

<details> <summary>Table of Contents</summary>

• Demo
• Quick start: Datum chat application
  • Requirements
  • 1. Install the JavaScript dependencies
  • 2. Create .env
    • Cloud model providers
      • Recommended free cloud models through OpenRouter
      • OpenAI GPT Nano
      • Other OpenAI-compatible providers
    • Recommended cloud configurations
    • Local models with Ollama
    • Other model services
  • 3. Start Datum
    • Optional: build the image locally
• Use the MCP server without Datum
  • Pull and verify the image
  • Configure a file inbox
  • Claude Desktop
  • Claude Code
  • Cursor
  • VS Code
  • Other MCP clients
• File and dataset handling
• Architecture
• Tool catalog
  • Dataset management and inspection
  • Validation
  • Transformations
  • Export, conversion, and database
  • Specification and schemas
• Example prompts
  • Inspect a file
  • Validate a file
  • Create a subset
  • Clean and download
• Configuration reference
• Run without Docker (not recommended)
  • Install Ollama manually
• Security
• Contributing
• Next
• Tests
• Known limitations
• Issues and Feedback
• Upstream Projects
  • CityJSON
  • CityJSON Tools
  • Model Context Protocol
• Citation
  • APA
  • IEEE
  • BibTeX
• License
• About Developer

</details>

---

Demo

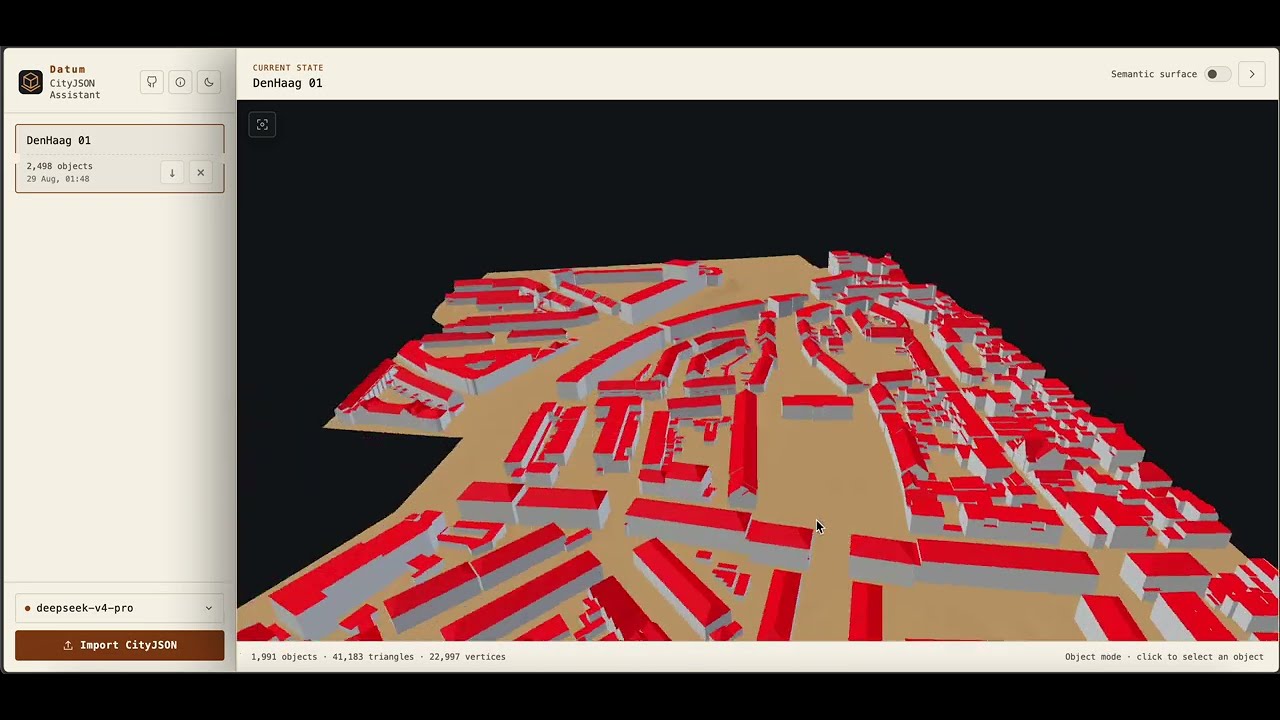

The following video is a demo of Datum, the chat application in this repository. It shows importing a CityJSON file, inspecting it, creating a subset, and downloading the derived dataset.

---

Quick start: Datum chat application

Datum is the official AI client provided with CityJSON MCP toolbox. It accepts CityJSON attachments in the browser, and lets a configured LLM model call the CityJSON tools to process datasets and answer user questions.

For a complete visual tour of the interface and its behavior, see the Datum guide.

For every supported setup path and environment option, see Installation and configuration.

Requirements

• Docker Desktop or Docker Engine with Docker Compose.
• Node.js 20 or newer.
• An API key for a cloud model that supports tool calls, or a local Ollama model.

Datum supports local Ollama models. However, for optimal performance and reliability, we recommend using a cloud model. Local models may encounter memory constraints, particularly with larger workloads, and have not yet been extensively tested.

1. Install the JavaScript dependencies

npm install

2. Create .env

Copy the example file:

cp .env.example .env

Set these values before starting Datum:

MODEL_PROVIDER=openrouter
MODEL_NAME=openrouter/free
MODEL_API_KEY=replace-with-your-openrouter-api-key
MODEL_BASE_URL=https://openrouter.ai/api/v1
MODEL_TEMPERATURE=0.1

The model settings mean:

| Variable | Required | Description | |---|---:|---| | MODEL_PROVIDER | yes | Model service: ollama, openrouter, openai, or anthropic. Ollama, OpenRouter, and OpenAI-compatible services use the OpenAI Chat Completions format internally. | | MODEL_NAME | yes | Exact model identifier sent to the provider, for example openrouter/free. The model must support tool calls. | | MODEL_API_KEY | except Ollama | API credential issued by the model provider. Local Ollama needs no key. Do not commit .env. | | MODEL_BASE_URL | yes | Base URL for the provider API. | | MODEL_TEMPERATURE | no | Sampling temperature. Datum defaults to 0.1. | | OLLAMA_CONTEXT_LENGTH | no | Ollama context window in tokens. Defaults to 16384; larger values use more RAM or VRAM. |

The .env model is the default model in Datum. Users can add other models from the model menu in the UI. Models added through the interface remain in server memory for up to eight hours. Their API keys are not returned to the browser or passed to MCP tools.

Cloud model providers

Datum supports OpenRouter, OpenAI-compatible APIs, and Anthropic as cloud providers. Credentials stay in the running application and are not passed to MCP tools. Datum runs a live tool-call check before accepting any model because catalog metadata alone does not guarantee reliable agent behavior.

Recommended free cloud models through OpenRouter

Create an OpenRouter API key, choose OpenRouter (cloud catalog) in Datum, and paste the key. Select Free Models Router at the top of the refreshed catalog. It uses the stable openrouter/free ID and automatically selects an available free model compatible with requested features such as tool calling.

To make it the default:

MODEL_PROVIDER=openrouter
MODEL_NAME=openrouter/free
MODEL_API_KEY=paste-your-openrouter-key-here
MODEL_BASE_URL=https://openrouter.ai/api/v1
MODEL_TEMPERATURE=0.1

This is Datum's recommended free-cloud configuration. It avoids depending on one free provider's capacity, but the selected model can vary between calls. Free usage is intended for experimentation and low-volume work, is rate-limited, and may be less predictable than paid inference. You can still select a specific :free model when model consistency matters more than automatic availability.

OpenAI GPT Nano

Use the OpenAI choice with an API key:

MODEL_PROVIDER=openai
MODEL_NAME=gpt-5-nano
MODEL_API_KEY=paste-your-openai-api-key-here
MODEL_BASE_URL=https://api.openai.com/v1

GPT-5 Nano supports function calling but the OpenAI API does not provide it on the free usage tier. It is inexpensive and useful for testing, although a stronger coding model may be more reliable for long CityJSON tool workflows.

Other OpenAI-compatible providers

For any service exposing an OpenAI-compatible Chat Completions endpoint, choose OpenAI-compatible API, then enter the provider's exact model ID, API key, and base URL. This covers services such as Gemini and DeepSeek without hard-coding a changing provider directory. Services requiring a different protocol, OAuth flow, or custom request headers are not automatically compatible.

MODEL_API_KEY takes precedence for the default model. Datum also recognizes OPENROUTER_API_KEY, OPENAI_API_KEY, and ANTHROPIC_API_KEY for their matching MODEL_PROVIDER. All of these model credentials are removed from the environment passed to the MCP subprocess.

Recommended cloud configurations

For free experimentation, use openrouter/free as shown above. OpenRouter chooses a currently available free model and filters for capabilities required by the request. Its free tier has limited request quotas and free-provider capacity can fluctuate.

For the best reliability and more demanding CityJSON tool workflows, use a paid Gemini or DeepSeek model through its OpenAI-compatible endpoint. Choose OpenAI / compatible API in Datum and enter the provider's model ID, API key, and base URL. Paid models avoid the tight shared-capacity limits of free endpoints and keep the model stable throughout a conversation.

Google API keys are managed in Google AI Studio; see Google's OpenAI compatibility guide and pricing. For DeepSeek, use its API documentation and pricing. Review each provider's data policy before sending confidential CityJSON datasets.

Local models with Ollama

Ollama is an optional companion service. A normal npm run chat enables it automatically only when .env has MODEL_PROVIDER=ollama. Cloud-model configurations start Datum without inspecting, pulling, or starting the Ollama image. The launcher prints the selected mode before it checks Docker images.

Override the automatic choice when needed:

# Keep Ollama available alongside a cloud default
npm run chat -- --with-ollama

# Start only Datum, even if .env currently selects Ollama
npm run chat -- --without-ollama

For a persistent setting, use CHAT_ENABLE_OLLAMA=true or CHAT_ENABLE_OLLAMA=false in .env. Command-line flags take precedence. If Ollama is enabled, no separate installation is required: the launcher first looks for native Ollama on macOS and otherwise pulls the official image when missing. Docker model downloads remain in the ollama-models volume.

To make an Ollama model the default, configure .env:

MODEL_PROVIDER=ollama
MODEL_NAME=qwen3:8b
MODEL_API_KEY=
MODEL_BASE_URL=http://ollama:11434/v1
MODEL_TEMPERATURE=0.1
OLLAMA_CONTEXT_LENGTH=16384

❗ Important: Always make sure to use a model that supports tool calls. For more information, please refer to: https://ollama.com/search?c=tools

When Ollama is enabled, you can select it in Datum and pull a model with the add button. npm run chat:stop stops the active containers without deleting downloaded models. Deleting a model from Datum removes only its saved configuration; it does not remove the downloaded model from Ollama. If you want the downloaded model deleted, please use the following command:

ollama rm <model-name>

Local model quality and memory requirements vary. Datum evaluates a model's metadata and actual call ou
