ESP32 APRS All in One

Firmware v1.1 (on the kitchen) Additions to v1.0

• Buzzer function will be active
• You can select a friend to activate buzzer with he/she's APRS beacon
• Smart menu will be available on the screen
• up-down-ok buttons will control the smart menu

Firmware v1.0 (available) Below functions are optional to use

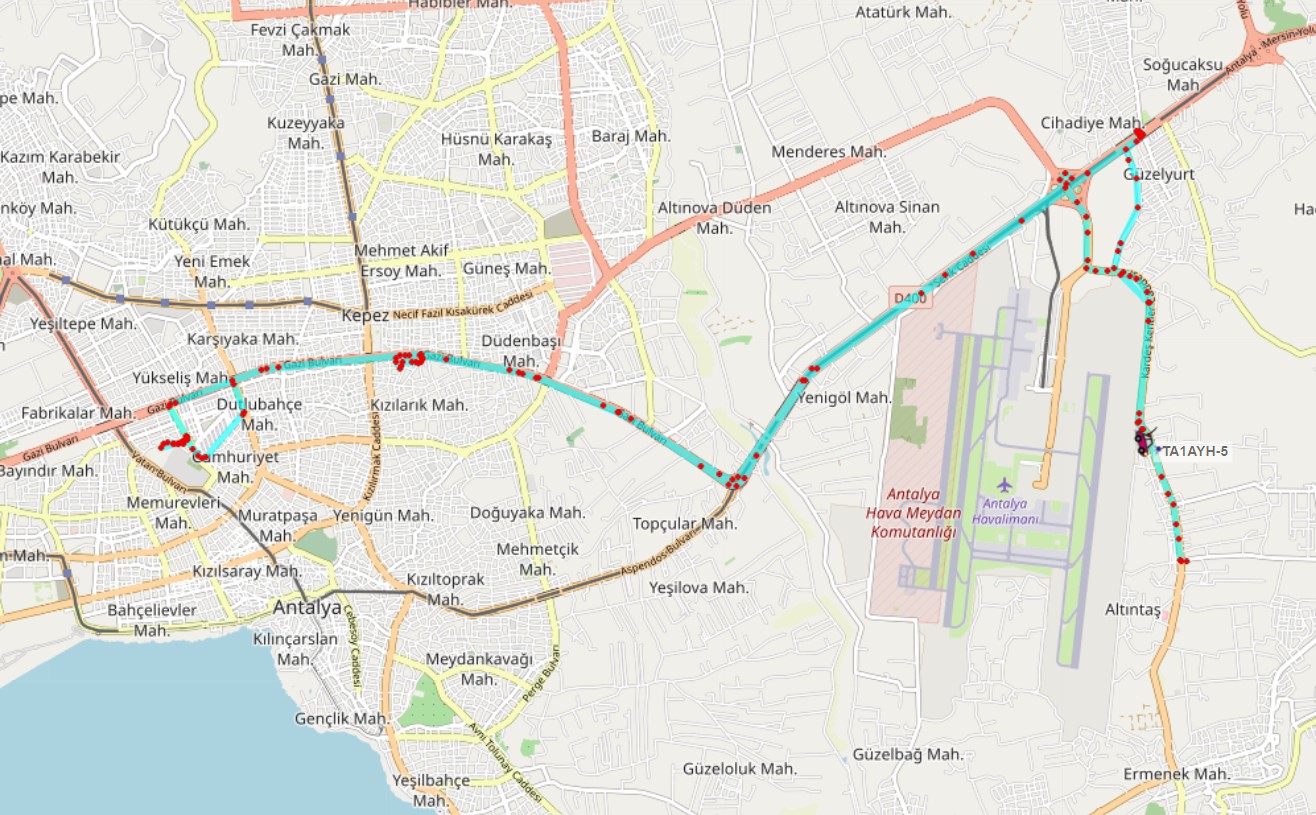

• APRS Tracker with Radio TX (with GPS Module)
• APRS Tracker direct to APRS-IS with WiFi (NO Radio TX), (with GPS Module)
• APRS iGate (with Wifi connection, no need GPS module)
• APRS Digipeater ( Manually ON-OFF and if you choose it on it works Automatically if there is no internet)
• While on APRS tracker mode also you can use the module as iGate to help other stations to reach the APRS-IS server (with WiFi and GPS module)

External GPS TX & RX pins to GPS RX & TX pins of APRS AIO v1.1

Kicad design builded by TA1AYH & TA2PLT

73's
