CityBuf Introduction

Binary variant of CityJSONSeq. Inspired by the FlatGeobuf standard (which in turn uses flatbuffers).

overall ~5x faster than CityJSON and ~2x faster than CityJSONSeq in a simple read test,
significantly lower memory usage than CityJSON and CityJSONSeq in simple read test (especially for large features),
overall 34% smaller files than CityJSON and 18% smaller than CityJSONSeq.

These number are based on the benchmark that is given in more detail below.

WORK IN PROGRESS!! this spec is not finalised yet

Goals

The primary goals of CityBuf are

be very fast to write/read features in a streaming fashion,
have a very low memory footprint wile reading large files,
lossless conversion to/from CityJSONSeq files (.city.jsonl),
use strongly typed attributes. This prevents type ambiguity as can happen with cityjson (eg 3DBV dataset has several issues, eg. inconsistent objectid (both string and int is used), or all values of an attribute are null (so not possible to deduce type)). This is important for lossles conversion to GIS formats (eg gpkg), and other reading applications where strong types are relevant.

Don't really care:

efficient in-place modifications of existing files
quick and DB like attribute access. Ie. this is not a column based format, focus is on feature-by-feature access in a streaming fashion, same as CityJSONSeq.

CityBuf file structure

A CityBuf (.cb) file is binary encoded and consists of the following parts (very similar to flatgeobuf):

Magic bytes. The first 8 bytes of a CityBuf file are a signature, containing: ASCII FCB, followed by the spec major version (currently 00), then FCB again, then the spec patch version (currently 04).
Header. A length-prefixed flatbuffer Header record (see CityBufHeader.fbs)
Data. A concatenation of length-prefixed flatbuffer CityFeature records (see CityBufFeature.fbs).

The length prefixes are Uint32.

Any 64-bit flatbuffer value contained anywhere in the file (for example coordinates) is aligned to 8 bytes from the start of the file or feature to allow for direct memory access.

Encoding of any string value is assumed to be UTF-8.

CityFeatures

The features in the Data portion of an CityBuf file are modelled after CityJSONFeatures. There is support for all the CityJSON geometry types and Semantic surfaces. One should be able to do a lossless conversion to/from CityJSON features (excluding the unsupported features).

Currently not supported are CityJSON's geometry templates, appearance and extensions. However, these features will be added in the future.

Geometry

Given this Solid with 2 shells in the CityJSON representation (nested lists of vertex indices):

boundaries:
[
  // 1st shell with 4 surfaces, 1st surface has 2 rings
  [ [[0, 3, 2, 1, 22], [1, 2, 3, 4]], [[4, 5, 6, 7]], [[0, 1, 5, 4]], [[1, 2, 6, 5]] ],
  // 2nd shell with 4 surfaces
  [ [[240, 243, 124]], [[244, 246, 724]], [[34, 414, 45]], [[111, 246, 5]] ]
]

CityBuf will represent this Solid using flat arrays:

// flat list of indices
indices:  [0, 3, 2, 1, 22, 1, 2, 3, 4, 4, 5, 6, 7, 0, 1, 5, 4, 1, 2, 6, 5, 240, 243, 124, 244, 246, 724, 34, 414, 45, 111, 246, 5]

// number of indices per ring, sum should equal length of indices array
strings:  [5, 4, 4, 4, 4, 3, 3, 3, 3]

// number rings per surface: 8 surfaces, 1st has 2 rings, the rest all have 1 ring
surfaces: [2, 1, 1, 1, 1, 1, 1, 1]

// number of surfaces per shell: 2 shells that each consist of 4 surfaces
shells:   [4, 4]

// number of shells per solid: one solid that consists of two shells
solids:   [2]

Which of these arrays have values, will depend on the geometry type. Notice that the strings array is used both for the Rings of a Surface, and the LineStrings of a MultiLineString.

Semantic values are also encoded using a flat array, similar to the indices.

geometry.py gives an implementation of how to go back and forth between these 2 representations.

Specificalities:

null values in the geometry semantic values list are encoded as the maximum value of a Uint32.

Attributes

To store attribute values we adopt the approach from flatgeobuf: a column schema that is stored in the columns vector field in the header (or optionally inside the features, in case attributes are different for each feature) and a custom binary attributes buffer that contains the attribute values and references the column schema, ie each value is encoded as:

Uint16 (2 bytes) column index — this indicates the “key”, by way of pointing to the index of the appropriate column in the Columns vector
Appropriate per-type binary representation. Depending on the ColumnType, sometimes these are statically sized and sometimes they include a length prefix. So for a Bool column it will always be 3 bytes — 2 for the index and 1 for the bool itself (u8, little-endian). For a String, it’s variable, with 2 bytes for the column index, then a 4-byte unsigned length, then a UTF-8 encoding of the String.

Attributes that have a null value can be explitly encoded using 4 bytes:

Uint16 (2 bytes) max value of a uint16
Uint16 (2 bytes) column index

Benchmark

This Benchmark compares CityBuf to CityJSON and CityJSONSeq. It compares the file size of the three formats for a variety of datasets, and a read test is performed, which gives us an idea of read speed and memory consumption during reading.

This is an extension of the benchmark given in https://github.com/cityjson/paper_cjseq. Some dataset were excluded:

Railway is not included because it uses geometry templates.
Helsinki_tex included because it uses textures. (TODO: remove Rotterdam/Montréal they also have textures)

Both features are currently not supported in CityBuf so not fair to include/compare.

All using a python implementation on MacOS. CPU: M1 Pro 12 Core.

NB the max RSS also includes program code, which in case of CityBuf is already 21MB (ie. this is the RSS just after the imports and before running the actual benchmark), therefore 21MB is the minimum RSS value in the table for CityBuf. The RSS values are therefore not representative of just the in-memory size of the loaded city objects, especially for the datasets with small features.

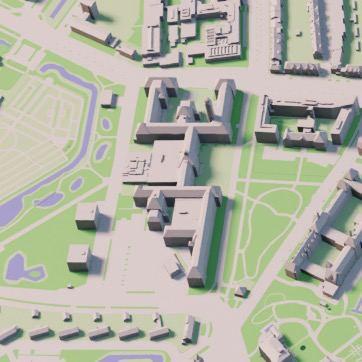

| Dataset | Format | Read test Max RSS (MB) | Read test runtime (s) | File Size (MB) | |-------------|---------------|------------------------| ----------------------|----------------| | 3DBAG | CityJSON | 76.52 | 0.14 | 6.7 | | | CityJSONSeq | 16.50 | 0.10 | 5.9 | | | CityBuf | 21.52 | 0.08 | 4.5 | | 3DBV | CityJSON | 3822.67 | 7.57 | 378 | | | CityJSONSeq | 137.27 | 3.97 | 317 | | | CityBuf | 38.94 | 0.92 | 285 | | Helsinki| CityJSON | 3760.11 | 7.48 | 572 | | | CityJSONSeq | 16.03 | 3.37 | 412 | | | CityBuf | 22.30 | 1.22 | 316 | | Ingolstadt| CityJSON | 65.94 | 0.09 | 4.8 | | | CityJSONSeq | 21.73 | 0.08 | 3.8 | | | CityBuf | 22.53 | 0.06 | 3.3 | | Montréal| CityJSON | 79.11 | 0.12 | 5.4 | | | CityJSONSeq | 20.48 | 0.10 | 4.6 | | | CityBuf | 21.41 | 0.05 | 2.1 | | NYC | CityJSON | 937.70 | 1.46 | 105 | | | CityJSONSeq | 17.47 | 0.83 | 95 | | | CityBuf | 21.77 | 0.35 | 78 | | Rotterdam| CityJSON | 42.56 | 0.06 | 2.6 | | | CityJSONSeq | 14.48 | 0.06 | 2.7 | | | CityBuf | 22.27 | 0.06 | 1.2 | | Vienna | CityJSON | 59.39 | 0.09 | 5.4 | | | CityJSONSeq | 16.59 | 0.08 | 4.8 | | | CityBuf | 21.59 | 0.07 | 4.2 | | Zurich | CityJSON | 2814.70 | 5.30 | 279 | | | CityJSONSeq | 18.34 | 2.45 | 247 | | | CityBuf | 22.33 | 1.73 | 197 |

The sum of the file sizes grouped by format is:

CityJSON: 1358.9 MB
CityJSONSeq: 1092.8 MB
CityBuf: 891.3 MB

The sum of the runtimes grouped by format is:

CityJSON: 22.31 seconds
CityJSONSeq: 11.04 seconds
CityBuf: 4.54 seconds

Implementation status

There are the following Python scripts:

cb2cjseq.py: a script to convert .cb to a .city.jsonl file
cjseq2cb.py: a script to co
